SIHUA high precision 60 m per min drywall profile roll forming machine

Production process: De-coiler→Roll forming machine →Double Shear cutting table (hydraulic system give power) all parts was control by electrical control system

GI drywall Profile as follow: punching hole Stud, track, Oméga, furring, wall angle

For stud and track thickness: 0.45 to 0.55mm inspection 0.50mm

For Ceiling channel “C” thickness 0.45 to 0.50mm inspection 0.45mm

For wall angle thickness: 0.45 to 0.50 MM inspection 0.45mm

Oméga thickness 0.45 to 0.50mm inspection 0.45mm


Product Detail

Product Tags

Function

No. Items Quantity and photo

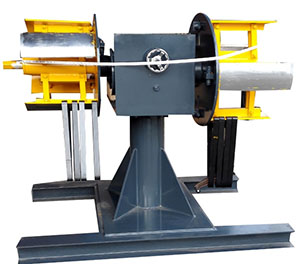

1 Double de-coiler 1set

Double de-coiler

2.1  forming machine with drive system 1set
SIHUA high precision 60m per min1
2.2 Straightener  rollers 5set straighten rollers

SIHUA high precision 60m per min

2.3 14steps Stud and track profile cassette rollers SIHUA high precision 60m per min2
2.4 12 steps Omega profile cassette rollers SIHUA high precision 60m per min2
2.5 Main channel profile cassette rollers SIHUA high precision 60m per min2
2.6 Wall angle profile cassette rollers SIHUA high precision 60m per min2
3 Double Flying shear cutting table  Working speed 60M per min 1set

Double Flying shear cutting table

4 Hydraulic system 1set

Hydraulic system

5 Electric control system 1set

Electric control system

6 Turn over Packing table4 meter 1set

Turn over Packing table

SIHUA HIGH PRECISION 60 M PER MIN DRYWALL PROFILE ROLL FORMING MACHINE is a specific type of cassette keel channel roll forming machine that is designed to produce metal profiles used in drywall construction. It is a high precision machine that can produce profiles at a speed of 60 meters per minute, which makes it efficient for large-scale production. The machine is equipped with advanced technology that ensures accurate forming of the profile, and it can produce profiles of different shapes and sizes by simply changing the forming rollers. The drywall profile roll forming machine is an essential piece of equipment for manufacturing companies involved in the production of drywall profiles and other metal sections used in the construction industry.

Sihua high precision 60 m per min drywall profile roll forming machine01
Sihua high precision 60 m per min drywall profile roll forming machine02
Sihua high precision 60 m per min drywall profile roll forming machine03
Sihua high precision 60 m per min drywall profile roll forming machine04
Sihua high precision 60 m per min drywall profile roll forming machine05
Sihua high precision 60 m per min drywall profile roll forming machine06
