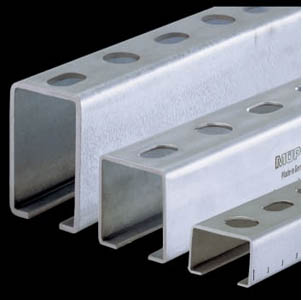

C type struct slotted channel roll forming machine

C Type Struct Channel roll forming machine
No	Item	Unit	Qty
1.1	Hydraulic de-coiler	No	1
1.2	Straightener	No	1
1.3	Servo feeder	No	1
2.2	Punching die	No	1
3	C 38*40 roll forming machine Product speed 30-50M per min	No	1
4	Cutting unit, speed is 15-30M per min	No	1
6	Hydraulic system	No	1
7	Electric control system	No	1
8	Packing table	No	1

Send email to us

Product Detail

Product Tags

Product Description

Profiles drawing
C RAIL material thickness 1.5-4.0mm

Production speed
Product speed is 40-45M- 30Mper min -20M/min Product thickness is 0.5-1mm-2.00mm-2.5.00mm
Product length tolerance L+-1mm
Total power:45.4kw
Voltage: 380v 3-phase 50hz
Motor in roll forming machine: 30KW*1PC
Motor in hydraulic station power is 11kw
Servo motor is 4.4kw

C Type Struct Slotted Channel roll forming machine

Introduction
Production process: De-coiler →lever and feeder → press machine(contain punching die)→roll forming profile →cutting table →packing table (hydraulic system given power) all parts were control by electrical control system

C Type Struct Slotted Channel roll forming machine1

Video

De-coiler of struct channel roll forming machine

Capacity is 3tons *2PC straightener.

Press machine of struct channel roll forming machine

Yangli capacity 125tons YANGLI JH21-125.

Struct channel roll forming machine with drive system

C 38*40 roll forming machine Product speed30-50m per min.

Electric control system of struct channel roll forming machine

1. Encoder: OMRON(Japanese brand)
2. Frequency motor: 45KW(NIDEC)JAPAN
3. PLC: MITSUBISHI(Japanese brand)
4. Human interface: KINCO
5. Relay: OMRON(Japanese brand)
