90m per min stud and track drywall profile roll forming machine
DRYWALL METAL PROFILES & SPECIFICATIONS STEEL SPECIFICATIONS
Our Metal Sections are manufactured using hot dipped zinc coated steel-Z180 & Z275 STUDS

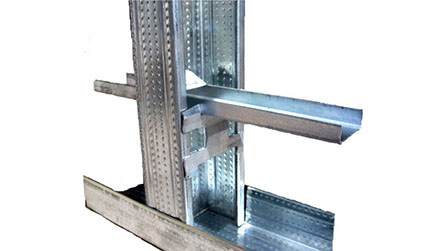

Studs are the Primary sections used in the Drywall & Lining Systems. Studs used in Vertical condition at appropriate centers to match the structural stability based on the design. Studs are fixed between the Base & Head Track, Screwed only with the Base track & Friction fit at the Head Track.
Material thickness 0.55-1.00mm
Wed size: 50/75/100/125/150mm
Flange: 34/36mm
Length: 3000mm & Customized Length
Deflection Tracks are used at the top as Head Tracks. Which helps to allow the partitions, when needs a movement (up, down) within the structure at the head of a partition. Deflection Tracks Secured with appropriate anchors at Concrete Slab & Hold the studs in position and it helps in aligning the Boards.
Thickness:0.80, &0.90 mm
Width: 50,64,70,75,90,100,125&150mm
Flange: 50mm
Length: 3000mm
Tracks are the Secondary sections used in the Drywall & Lining Systems. Tracks used in Horizontal condition & Secured with appropriate anchors at Floor Slab & Soffit. Tracks Hold the studs in position and it helps in aligning the Boards.
Thickness:0.55,0.60,0.80,0.90,1.20 & 1.50 mm
Witth: 50,64,70,75,90,100,125 & 150 mm
Flange: 30mm
Length: 3000mm
| No | Item | Unit | Qty |
| 1 | Double Head Hydraulic De-Coiler | No | 1 |
| 2.1 | Roll-Forming Machine Base | No | 1 |
| 2.2 | Automatic change profile system | No | 1 |
| 2.3 | Introduction and Lubricating Unit | No | 1 |
| 7 | Dobule Wagon Cutting and punching Unit | No | 1 |
| 8 | Cutting Dies for UW and CW_EU & Special Cutting Die for CW_IT Profile | No | 1 |
| 9 | Hydraulic Unit | No | 1 |
| 10 | Electric control system (PLC) | No | 1 |
| 11 | Safety Guards, Fences and protection system for all units | LS | 1 |
